OF5 (offline filtration unit)

Specifications:

• Filtration Unit, OF5, mobile

• Vane Pump

• Flow and Preasure: 40 l/min, 4.5 bar

• Viscosity Range: 5 ... 350 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

Dimensions:

• LxBxH: 650 x 800 x 950 mm

• Permitted Tank size: 0 ... 5000 capacity

• Weight: 80kg

Dirt holding capacity: up to 273g at 2bar Δp

OFT (Offline filtration unit)

Specifications:

• Off-line Filtration Unit,

• Screw Pump

• Flow and Preasure: 45 or 75 l/min, 4.5 bar

• Viscosity Range: 5 ... 500 mm²/s

Permitted operation fluid:

• Mineral & Lube Oil (DIN   51424)

Dimensions:

• LxBxH: 1450 x 800 x 1950 mm

• Permitted Tank size: 0 ... 20 000 capacity

• Weight: 135 kg

Dirt holding capacity: Up to 560g at 2 bar.Δp

FAM 5 (vacuum dehydrator)

Specifications:

• 400V /50Hz 3Ph

• Flowrate : 5 l/min,

• Viscosity range: 15 … 550 mm²/s

• Permitted reservoir size: <2000L

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517, 51524 Fluids

• Synthetic esters (HEES) DIN 51524/2

• Vegetable oils (HETG, HTG)

• HFD-R fluids (not for pure phosphate ester which requires EPDM seals)

Dimensions:

• LXWXH: 602mm X 610mm X 1232mm

• Weight: 120 kg

Dirt holding capacity: Up to 240g at 2 bar.Δp

FAM 10 (vacuum dehydrator)

Specifications:

• Flow and Pressure: 10 l/min, 4.5 bar

• Viscosity range: 15 … 800 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517,

• FRF fluids

Dimensions:

• LxWxH: 620 x 980 x 1780 mm

• Permitted Tank size: 1000 ... 7000 Liters

• Weight: 300 kg

Dirt holding capacity: Up to 240g at 2 barΔp

FAM 25 (vacuum dehydrator)

Specifications:

• Flow and Pressure: 25 l/min, 0 ... 4.5 bar

• Viscosity range: 15 … 550 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517, 51524 Fluids

• Synthetic esters (HEES) DIN 51524/2

• Vegetable oils (HETG, HTG)

• HFD-R fluids (not for pure phosphate ester which requires EPDM seals)

Dimensions:

• LxWxH: 690 x 1480 x 1915 mm

• Permitted Tank size: 7000 ... 15000 Liter

• Weight: 410kg

Dirt holding capacity:  Up to 480g at 2 barΔp

FAM 45E (vacuum dehydrator)

Specifications:

• Flow and Preasure: 45 l/min, 0 ... 4.5 bar

• Viscosity range: 15 … 1100 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517, 51524 Fluids

• Vegetable oils (HETG, HTG)

• HFD-R fluids (not for pure phosphate ester which requires EPDM seals)

Dimensions:

• LxWxH: 780 x 1200 x 1966 mm

• Permitted Tank size: 15000 ... 25000 Liter

• Weight: 405 kg

Dirt holding capacity: Up to 500g at 2 bar.

FAM 75E (vacuum dehydrator)

Specifications:

• Flow and Preasure: 75 l/min, 0 ... 4.5 bar

• Viscosity range: 15 … 1100 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517, 51524 Fluids

• Vegetable oils (HETG, HTG)

• HFD-R fluids (not for pure phosphate ester which requires EPDM seals)

Dimensions:

• LxWxH: 680 x 1200 x 1830 mm

• Permitted Tank size: 15000 ... 45000 Liter

• Weight: 465 kg

Dirt holding capacity: Up to 750g at 2 bar.

FAM 95 (vacuum dehydrator)

Specifications:

• Flow and Preasure: 95 l/min, 0 ... 4.5 bar

• Viscosity range: 15 … 550 mm²/s

Permitted operation fluid:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517, 51524 Fluids

• Vegetable oils (HETG, HTG)

• HFD-R fluids (not for pure phosphate ester which requires EPDM seals)

Dimensions:

• LxWxH: 1800 x 850 x 1960 mm

• Permitted Tank size: > 45000 Liter

• Weight: 620 kg

Online particle counter

Dirt holding capacity: Up to 560g at 2 bar.

LVH-CD (diesel filtration unit)

Specifications:

• Flow and Preasure:10 l/min, 3 bar

• Permitted Tank size: > 7000L

Dimensions:

• LxWxH: 500 x 300 x 816 mm

• Weight: 38 kg

Other:

•  Water removal: up to 10l/h

•  220V power supply

Dirt holding capacity: Coalescing and filtering

VEU-F (varnish removal unit)

Specifications:

• 400V /50Hz 3Ph

• Viscosity range- 15…1000mm²/s

• Up to 8000g of varnish retaining capacity

• Permitted tank size up to 20,000L.

• Suction and return hose: 5 meters each

Permitted operating fluids:

• Mineral oils

Dimensions:

•  LxWxH: 1530mmX800mmX1832

• Weight: 335 kg

Dirt holding capacity: Up to 2000g at 2 barΔp

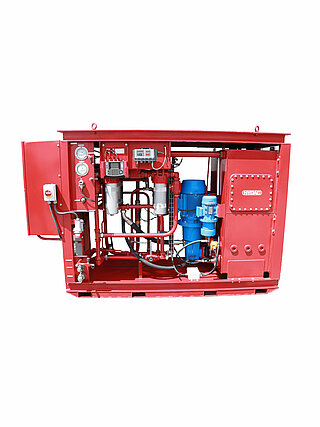

SPA 315* (flushing and pressure test unit)

Specifications:

• Flow rate 35…315 l/min, 3 … 500 bar

• Viscosity range: 15…315mm²/s

Permitted operation fluids compatible with NBR seals:

• Mineral Oil (DIN 51424)

• Gear oils to DIN 51517

Dimensions:

• LxWxH: 2100 x 800 x 1700 mm

• Weight: 1270 kg (empty tank)

Diesel Filtration Skid (diesel filtration skid)

Specifications:

• Up to 95L/min

• 380V /50Hz 3Ph.

• Viscosity range: 6 mm²/s

• Permitted tank size up to 50,000L.

• Suction and return hose: 5 meters each.

Permitted fluids

• Diesel fuel

Dimensions:

• LXWXH : 1500X600X1052

• Weight: 260 kg

HFU 1250 (flushing unit)

General Specifications HFU:

• Power supply: 4x63A 380..500 VAC 50/60Hz

• 280 l/min at 200 bar (4x70 l/ min per pump group)

• 1250 l/min at 45 bar (4x313 l/ min per pump group)

• Test pressure up to 525 bar electronically adjustable.

• Pressure adjustable nitrogen blowout for emptying flushing circuit.

Automatic data logging (on USB stick or printable for a report on the spot) of:

• Contamination level readout according to ISO and SAE and/or NAS:

• Saturation level: 0 … 100% (water content)

• Temperature

• Conductivity

• Flow

• Pressure

Filtration grade pressure supply 10μ

Filtration grade return line 3μ or 10μ

Filtration grade bypass system 5μ

Reservoir capacity 2750 liter

Dimensions:

• LXWXH : 3.10m X 2.44m X 2.59m

• Weight: 6 500 kg
